Rotary Unions

The 400 Series coaxial dual passage rotary unions are compact, lightweight and corrosion-resistant featuring a aluminum anodized housing and stainless steel shaft. All 400 Series models come standard with a male threaded shaft and a female threaded housing for easy mounting

• Media Type: Air/Vacuum/Gas
• Available Passage Size:

Size (BSP)	Model (Type Inline inlet/outlet ports)	Model (Type perpendicular inlet/outlet ports)
1/8"	400-11	410-11
1/4"	400-22	400-22
3/8"	400-33	410-33
1/2"	400-44	410-44
3/4"	400-55	410-55
1"	400-66	410-66
1 1/4"	400-77	410-77
1 1/2"	400-88	410-88
2"	400-99	410-99

• Connection Types: British Standard Pipe Thread (BSP); other thread sizes available on request
• Body Material Type: Stainless Steel (Aluminum or Carbon Steel also available on request)
• Max Operating Pressure: 10 Bar (High pressure available on request)
• Max Vacuum: 30 Hg
• Max Rotational Speed: 2500 RPM ( Upto 5000 RPM available on request)
• Operating Temperature: -18 to 105 deg Celsius *(Higher temperature available on request)
• * Customizations in body material and operating temperature possible

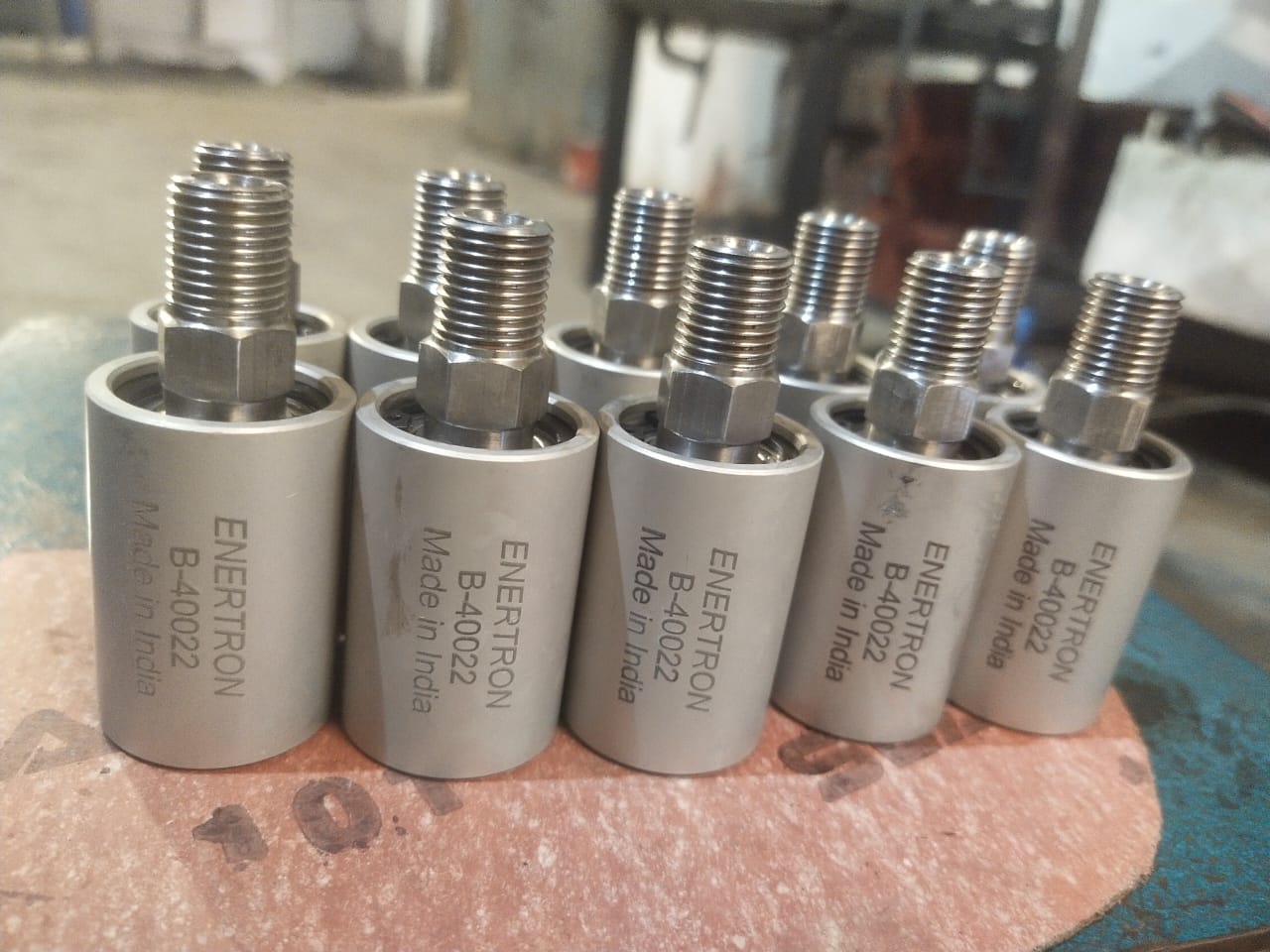

400 series rotary union

• Drawings provided above are based on our best knowledge. Minor updates in drawing might not be reflected on website. Buyers are requested to confirm the drawing while order placement.
